BenchPod MCP server

embeddedci-mcp is an MCP server that lets an AI agent drive a real hardware-in-the-loop bench: flash a build, power-cycle the target, watch and type into its UART, emulate the sensor it expects, probe its I2C and CAN traffic, and drive and measure analog signals. It is a thin layer over the BenchPod SDK, so what an agent finds interactively can become a pytest test.

Install as a plugin

The quickest way. The plugins in embeddedci-com/benchpod-mcp run this server through uvx and ask for the pod's address, the board's I/O voltage and an optional API key. All you need is a BenchPod reachable over your network, USB or embeddedci.com; the plugins install everything else on first start (see the FAQ).

No terminal and no claude command needed.

1

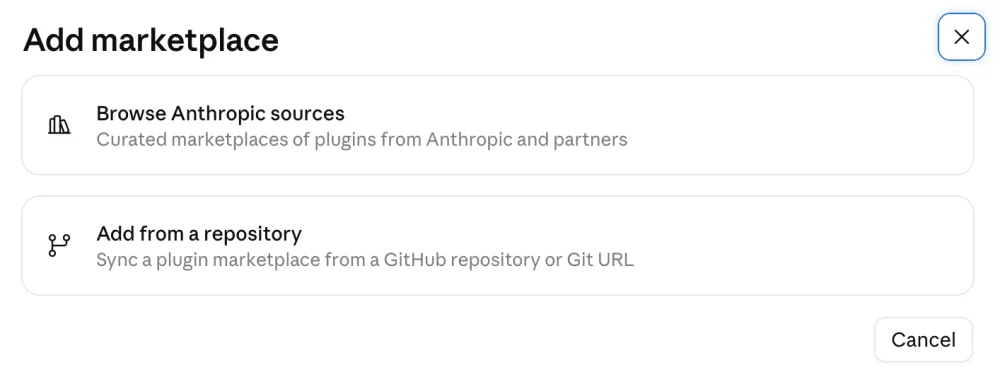

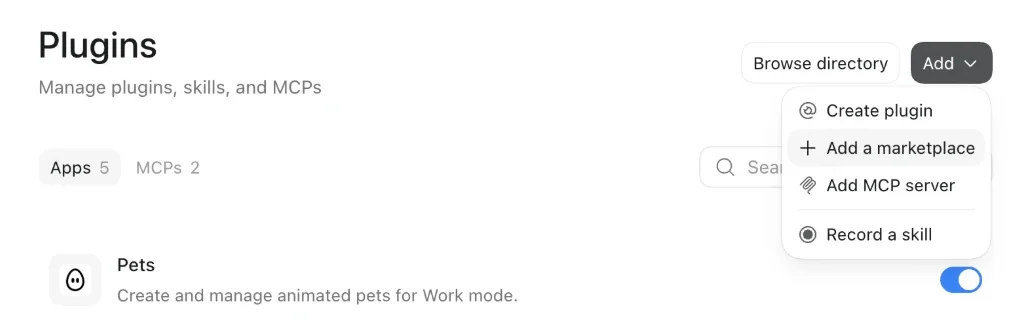

Open Settings → Plugins, click Add and add a marketplace. Choose Add from a repository and enter embeddedci-com/benchpod-mcp.

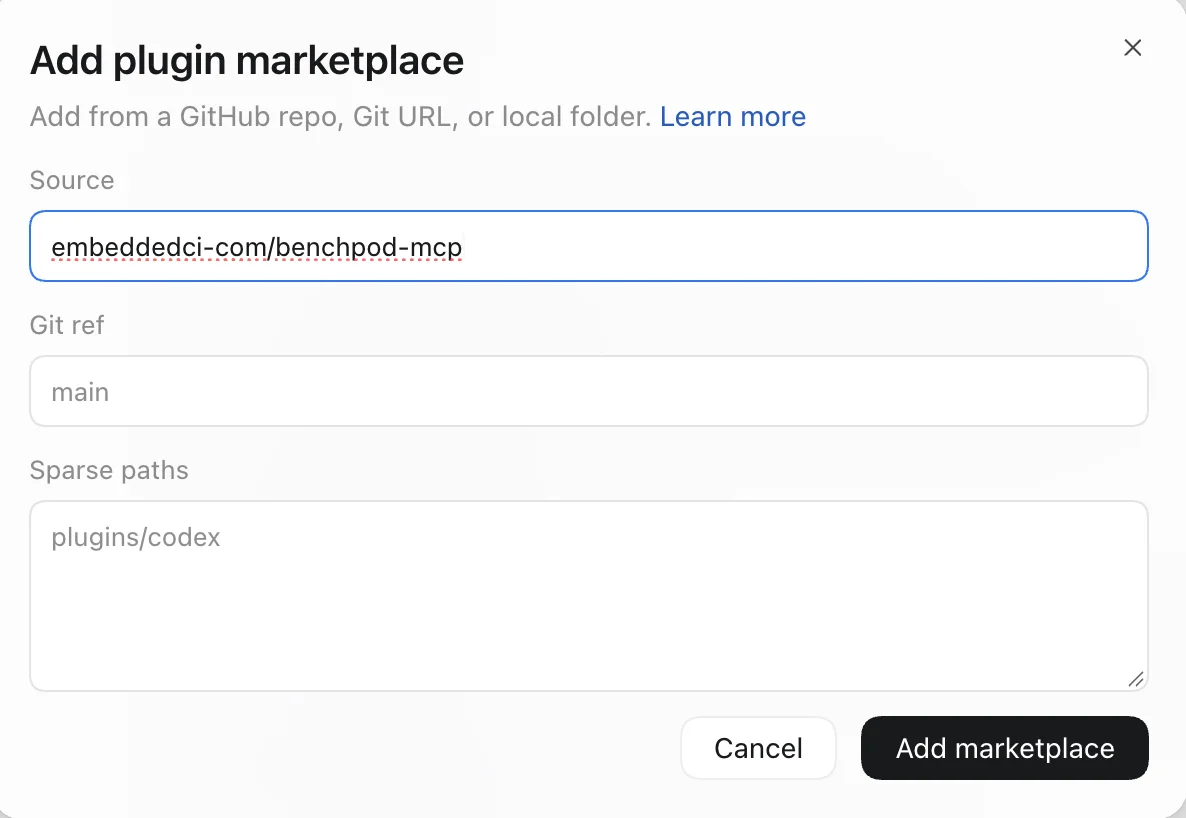

Claude app Add marketplace dialog with Browse Anthropic sources and Add from a repository

2

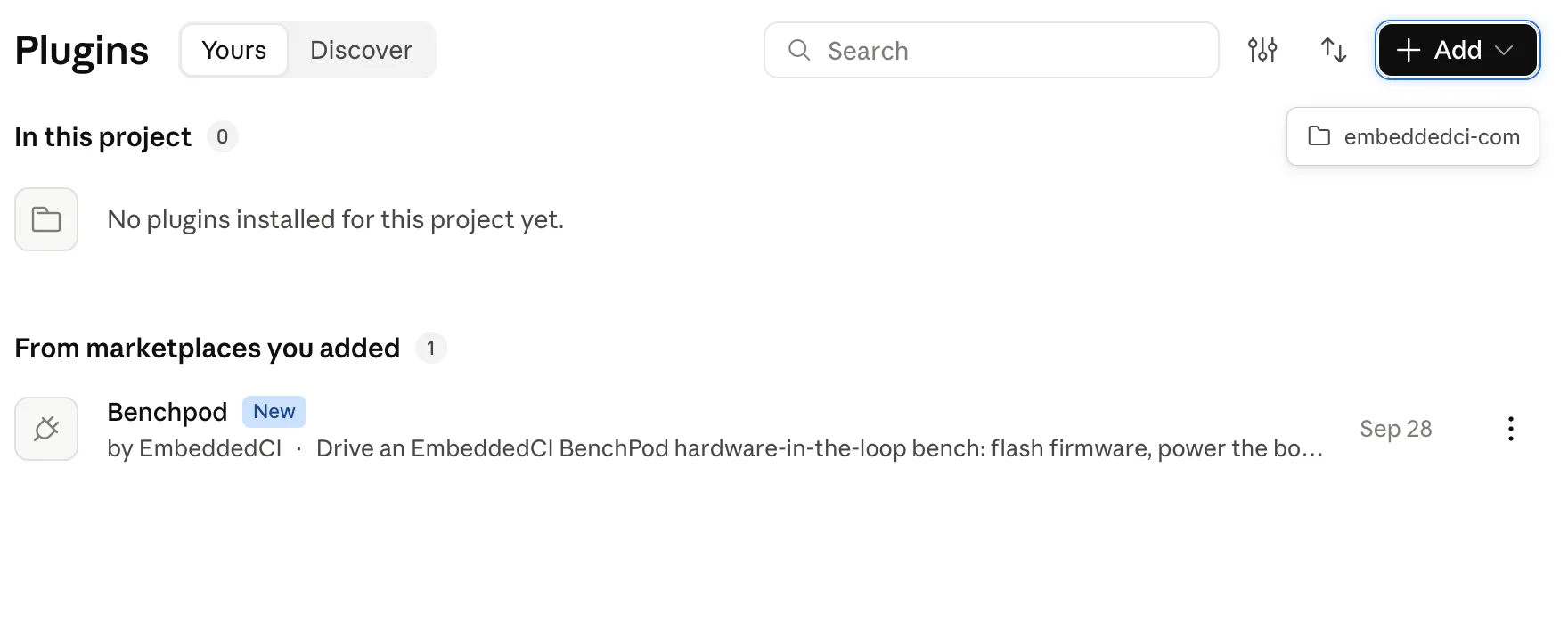

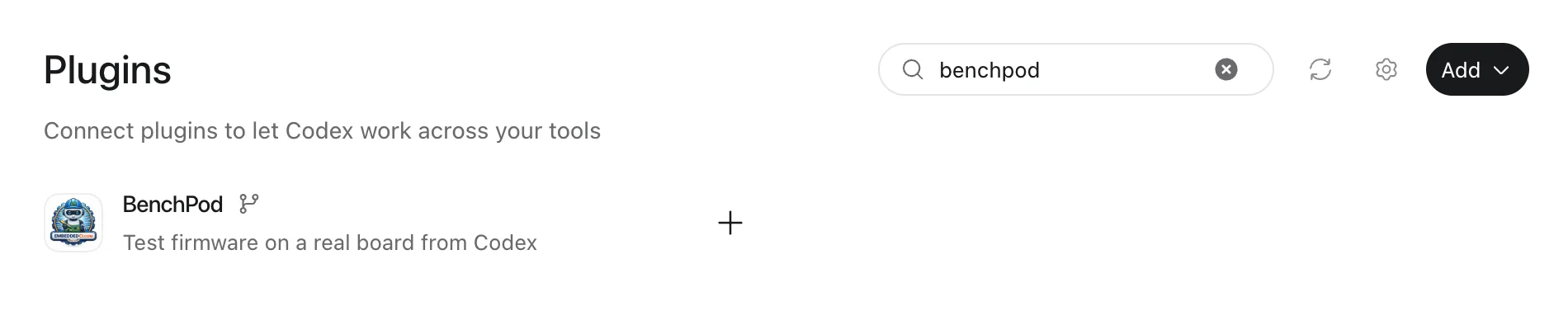

Benchpod shows up under From marketplaces you added.

Claude app Settings, Plugins page listing Benchpod under From marketplaces you added

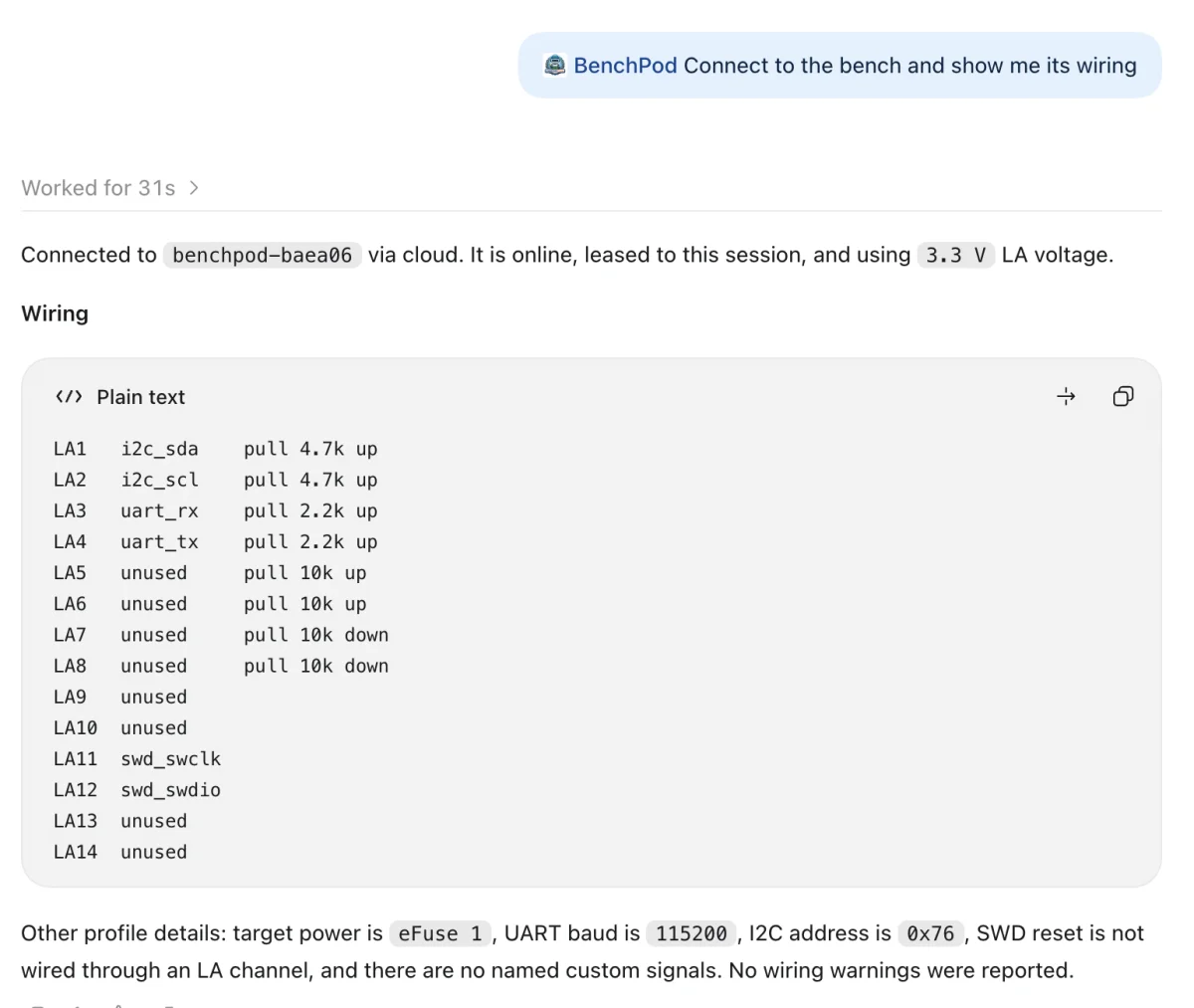

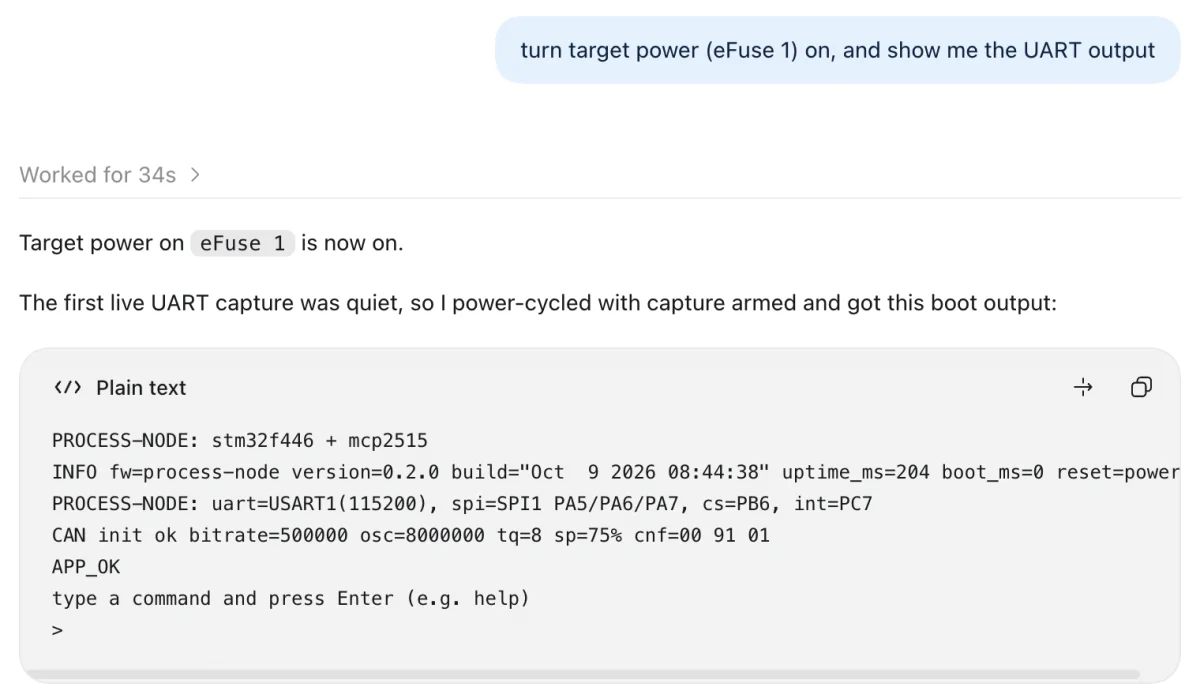

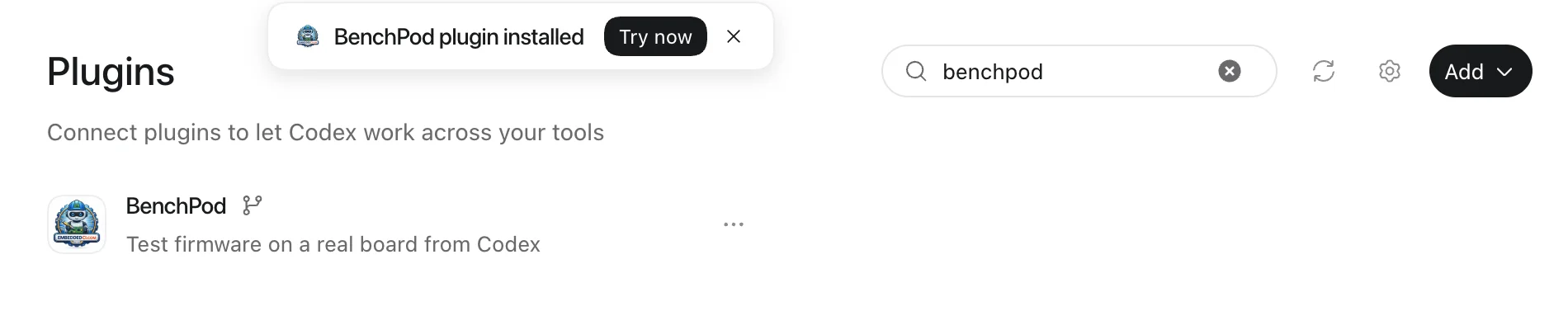

The plugin works in the Code tab. Ask the agent to connect to your pod ("connect to the BenchPod at 192.168.1.213", or "find my BenchPod on the network") and it sets the board's I/O voltage before it uses the pins.

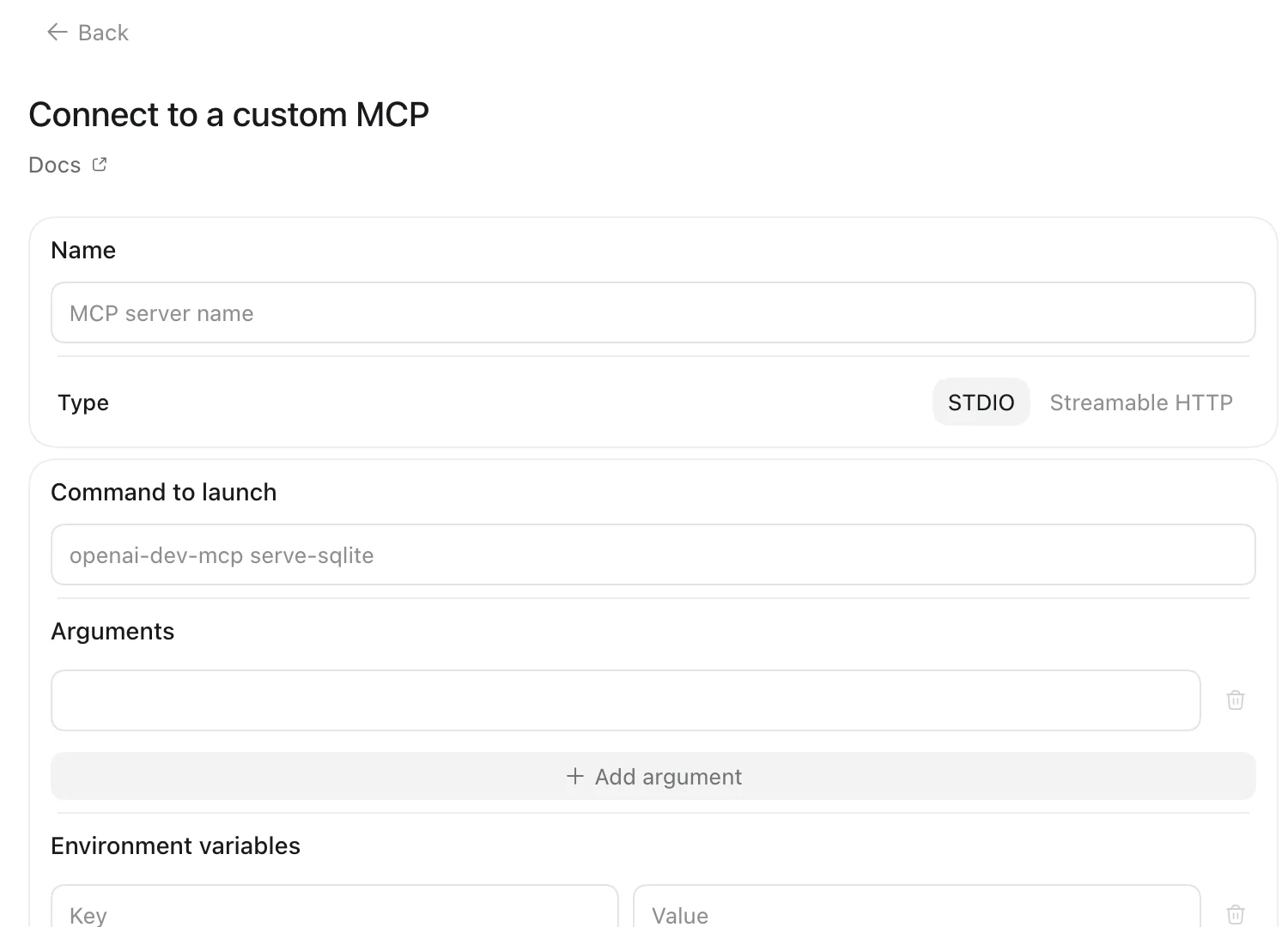

Set up your client by hand

The configs below run the server with uvx, so they need uv on your PATH (how to install it). The Claude app extension brings its own.

claude mcp add benchpod \
  -e BENCHPOD_CONNECTION=192.168.1.213 -e BENCHPOD_LA_VOLTAGE=3.3 \
  -- uvx embeddedci-mcp

BENCHPOD_LA_VOLTAGE must match the target's I/O voltage (1.8 for a 1V8 board). The pod refuses flashing, UART, logic capture, pull resistors and sensor emulation until it is set. Without it the agent is told to call set_la_voltage first.

A pod in the cloud

"env": {
  "BENCHPOD_CONNECTION": "embeddedci:my-bench",
  "BENCHPOD_API_KEY": "eci_…",
  "BENCHPOD_LA_VOLTAGE": "3.3"
}

Or skip the API key: after benchpod login the server reuses that session for cloud_list_devices and connect("embeddedci:<name>"). BENCHPOD_API_KEY wins when set, and inside GitHub Actions the SDK uses OIDC instead. cloud_list_devices lists the pods on your account and which are online without connecting to one; pass a result's connection to connect.

A cloud pod is shared, so connect takes an exclusive lease. It is released by disconnect, or after the idle timeout (10 minutes by default); the next tool call reconnects transparently, so an idle chat never blocks CI on that pod.

The saved connection

connect picks its connection from its connection argument, then --connection, then BENCHPOD_CONNECTION, then the default connection the CLI saved (benchpod set-connection or benchpod discover --save, in ~/.config/benchpod-cli/config.json), then mDNS discovery of the one pod on the LAN. So a pod you set up with the CLI needs no MCP configuration. Needs embeddedci 2.10 or newer.

The wiring profile

The server resolves the wiring the same way the SDK does: a local wiring file (BENCHPOD_WIRING) first, then the profile stored on embeddedci.com for this pod (the Wiring tab of the pod's workspace), then the defaults. The stored profile is used for an embeddedci:<name> connection, and over the LAN when you are signed in (BENCHPOD_API_KEY or benchpod login) and the pod is on your account; over USB it is not. If it cannot be read, the defaults apply and the connection still works. BENCHPOD_WIRING_SOURCE=local skips it. The status result says which profile is in force in its wiring_source field, and set_wiring replaces it for the session.

Options

FlagEnvironmentDefaultPurpose
--connectionBENCHPOD_CONNECTION—host[:port], serial device, usb, discover, or embeddedci:<name>
--la-voltageBENCHPOD_LA_VOLTAGE—LA I/O voltage (1.8 or 3.3) applied on connect
—BENCHPOD_API_KEY—cloud pods and the waveform library (without it, the benchpod login session)
—BENCHPOD_API_BASEhttps://www.embeddedci.comanother embeddedci server
--lease-wait—30cloud: seconds connect waits for a busy pod
--idle-timeout—600cloud: release the lease after this many idle seconds (0 = never)
--timeout—30per-command pod timeout in seconds
--transport—stdiostdio or http
--host / --port—127.0.0.1 / 8000HTTP bind address
--auth-tokenEMBEDDEDCI_MCP_TOKEN—require a bearer token (mandatory off loopback)
--allowed-host——Host header(s) to accept on a network bind
--allow-unauthenticated—offserve a network address without a token (isolated networks only)

Serving a bench over HTTP

Run the server next to the pod, then point clients at it:

export EMBEDDEDCI_MCP_TOKEN=$(openssl rand -hex 32)
embeddedci-mcp --transport http --host 0.0.0.0 --connection 192.168.1.213 --la-voltage 3.3
claude mcp add --transport http benchpod http://bench-host:8000/mcp \
  --header "Authorization: Bearer $EMBEDDEDCI_MCP_TOKEN"

The server drives real hardware, so it refuses a non-loopback bind without a token. All HTTP clients share one pod connection and their tool calls are serialized.

Tools

Parameters in bold are required; the others are optional and show their default when they have one (no default means from the wiring profile, keep the current setting, or not used). Units are volts, amps, seconds and hertz. LA channel arguments take a number (1-14) or a name from the wiring profile. Each tool's input schema carries the full description, ranges and enums.

Connection

ToolPurposeParameters
connectOpen a connection (closing any previous one) and report status and capabilities.connection, la_voltage, lease_wait=30
disconnectClose UART/CAN sessions and the connection, releasing a cloud lease.none
statusFirmware, capabilities, LA voltage, open sessions and warnings (works when not connected).none
set_la_voltageSelect the LA I/O voltage to match the DUT (1.8 V needs a rev3 pod).voltage

Cloud (embeddedci.com)

ToolPurposeParameters
cloud_list_devicesThe pods on your embeddedci.com organization and whether each is online, without connecting.none

Wiring profile

ToolPurposeParameters
wiringWhich DUT signal is on which LA channel, plus the power rail, UART baud and SWD target.none
set_wiringReplace the wiring profile for this connection, or store it on embeddedci.com.profile, save=false

Power

ToolPurposeParameters
power_onSwitch the target's power rail on (optionally scheduled pod-side).efuse, delay
power_offSwitch the target's power rail off.efuse, delay
power_statusBoth eFuse rails: on/off, tripped, bus voltage and current, and the pod's own draw.none
reset_targetDrive the DUT's reset line from the pod's reset pin.action=pulse, pulse=0.1

Power profiles

ToolPurposeParameters
measure_powerSample supply current and voltage for a window: average, min, peak, energy and charge.duration, efuse, rate_hz=500, points=0
power_profile_startStart sampling the rail in the background while other tools run.efuse, rate_hz=500, max_duration=60
power_profile_stopStop the running profile and return its statistics (and a trace).points=0

Flash

ToolPurposeParameters
flashProgram the DUT over SWD through the pod's CMSIS-DAP probe: a local file (OpenOCD runs next to the server), or a build uploaded to embeddedci.com (build id or latest, repo, ref). On an embeddedci:<pod> connection embeddedci.com runs OpenOCD for an uploaded build; on LAN/USB it is downloaded and flashed next to the server. The result's artifact says which build was flashed.swclk, swdio, target, file, nreset, load_address, target_power, verify=true, reset=true, connect_under_reset, extra_configs, extra_args, timeout=300, connect_attempts=5, build, repo, ref, artifact, server_side

SPI flash and SPI devices

ToolPurposeParameters
spi_flash_infoRead the JEDEC ID and size of the SPI NOR flash on the SPI pins.sck, mosi, miso, cs, hz=1000000, mode=0
spi_flash_programErase, write and verify an image in the SPI NOR flash.file, addr=0, erase=true, verify=true, hold_reset=false, sck, mosi, miso, cs, hz=6000000, mode=0
spi_flash_readRead flash bytes to a file, or up to 4096 bytes as hex.addr, length, file, sck, mosi, miso, cs, hz=6000000, mode=0
spi_transferOne full-duplex SPI transaction with any device on the SPI pins.tx_hex, sck, mosi, miso, cs, hz=1000000, mode=0

UART

ToolPurposeParameters
capture_uartRecord the DUT's UART for a window, or until a regex matches.duration, rx, tx, baud, until_regex
power_cycle_and_capturePower-cycle the target and capture UART across the boot.rx, tx, efuse, delay=1, duration=4, baud, until_regex, off_settle=0.3
uart_openStart buffering the DUT's UART in the background.rx, tx, baud
uart_writeSend text to the DUT through the open UART session.text, line_ending=lf
uart_readReturn output received since the last read, optionally waiting for a match.until_regex, timeout=2
uart_closeStop the background UART session.none

Emulated I2C sensor

ToolPurposeParameters
enable_i2c_sensorMake the pod act as an I2C sensor for the DUT to read (engage pull-ups first): sensor is bmp280, bme280, sht4x or mpu6050.sda, scl, address, temperature_c, pressure_pa, sensor="bmp280", values
set_i2c_sensorChange what the emulated sensor reports: temperature_c, pressure_pa, or any reading in values (e.g. {"humidity_pct": 55}).temperature_c, pressure_pa, values
i2c_sensor_typesThe models the pod emulates, with their addresses and readings (key, unit, range, default).none
disable_i2c_sensorDisarm the emulated sensor.none
i2c_sensor_statusSensor state and bus activity counters: did the DUT talk to it?none
i2c_sensor_regsRead the emulated sensor's register image.start=0, length=256
i2c_sensor_captureCapture and decode the sensor's I2C bus into a transaction trace.samples=4096, sample_rate_hz=500000, address, register

Emulated GPS receiver

ToolPurposeParameters
enable_gpsMake the pod play a GPS module: NMEA sentences on tx for the DUT's UART RX, on a second UART so uart_open keeps the console (gateware v48).tx, baud=9600, rate_hz=1, sentences, latitude_deg, longitude_deg, altitude_m, speed_kmh, course_deg, satellites, hdop, fix, utc
set_gpsChange the fix: the position moves along course_deg at speed_kmh, fix=0 drops the lock.latitude_deg, longitude_deg, altitude_m, speed_kmh, course_deg, satellites, hdop, fix, utc
disable_gpsStop the GPS receiver and release its pin.none
gps_statusThe session (tx, baud, rate, fixes sent, overruns) and the fix it prints.none

Pull resistors

ToolPurposeParameters
set_pullEngage or release the bias resistors: LA1-LA6 pull up, LA7/LA8 pull down.las, enabled
pull_statusState, direction and value of the bias resistor on LA1-LA8.none

GPIO on the LA pins

ToolPurposeParameters
la_pinsWhat owns each of the 14 LA channels, with GPIO mode, level and bias resistor.none
gpio_modeClaim LA channels as GPIO (input, output or open drain).la, mode=output, level
gpio_writeSet the level of GPIO output and open-drain channels.la, level
gpio_readThe live level of LA channels (all 14 when la is omitted).la
gpio_waitWait until an LA channel reads a level (reached: false on timeout).la, level=1, timeout=5
gpio_pulseFPGA-timed pulses on an LA channel: width 4 us to 65.535 ms, count up to 65535.la, width, count=1
gpio_releaseReturn channels to high-Z, watched by captures.la

Analog

ToolPurposeParameters
analog_pathSet every analog mux and relay for a named path in one step.path
dac_outputRoute a DAC output and drive a calibrated DC voltage on it.path, volts
current_outHold a current on the 4-20 mA output (J9), in amps, or read its range.current
adc_readOne calibrated reading: front SMA, DAC loopbacks or the 4-20 mA input (J8).source=ext
calibrationThe stored calibration of the 4-20 mA input and the fit it uses.none
calibrateMeasure and store the 4-20 mA input's offset, or clear it.source=current_in, clear=false

Capture and decode

ToolPurposeParameters
capture_adcCapture the ADC: calibrated statistics, dominant frequency and a min/max envelope.samples=4096, sample_rate_hz, source, points=200, trigger_la, trigger_edge=rising, trigger_timeout=10
capture_laCapture all 14 LA channels: levels, edge count, first edge and frequency per channel.samples=4096, sample_rate_hz, stop_dac_after, trigger_la, trigger_edge=rising, trigger_timeout=10
capture_correlatedADC and LA from one hardware trigger, on one timebase.adc_samples=4096, adc_sample_rate_hz, la_samples=4096, la_sample_rate_hz, stop_dac_after, points=200, trigger_la, trigger_edge=rising, trigger_timeout=10, source
decode_laDecode I2C, UART or SPI from the last LA capture (or a new one).protocol, sda, scl, rx, baud, sclk, mosi, miso, cs, mode=0, capture=last, samples=16384, sample_rate_hz=1000000, max_items=200
la_timingEdge timestamps, pulse widths, frequency, duty cycle and channel-to-channel delay from the last capture.la, edge=rising, to_la, to_edge=rising, after=0, max_edges=100

DAC

ToolPurposeParameters
generateDrive a sine, square or sawtooth on a DAC output (volts, or amps on current_out).waveform, freq_hz, amplitude, offset, dac_path=5v, duration, sample_rate_hz, on_capture=false, route=true
dac_stopStop any DAC output: generator, replay or control loop.none
replayLoop your own samples, or the last ADC capture, out of the DAC.volts, from_last_capture=false, dac_path=5v, mapping=faithful, sample_rate_hz, fault, on_capture=false, route=true, switch_image=true
list_waveformsThe organization's cloud waveform library.none
replay_waveformLoop a cloud-library waveform out of the DAC.waveform_id, dac_path, mapping=faithful, sample_rate_hz, window_start=0, window_len=0, target_samples=0, fault, on_capture=false, switch_image=true
save_capture_as_recordingSave the last ADC capture to the cloud waveform library.name, full_scale_v

Control loop

ToolPurposeParameters
control_loopRun a tabulated transfer function in the FPGA (for example a solar panel I-V curve).curve, voc_code, sharpness=4, points=256, k=8192, vmin=0, vmax=65535, tick_div=64, source, input_code=0, step=0, input_map, switch_image=true
loop_inputRe-target the running loop's input without re-arming.input_code, source, step
loop_probeThe running loop's live operating point.none
fpga_imageSwitch the FPGA to the loop or deep_replay gateware image (~2-3 s).image

CAN

ToolPurposeParameters
can_openBring up the pod's CAN interface (normal, loopback or listen-only).bitrate=500000, mode=normal, term=false
can_writeQueue one classic CAN frame.can_id, data, ext=false, rtr=false
can_readRead received frames, or wait for one id.timeout=0, can_id, max_frames=32
can_respondAnswer a CAN id from the pod firmware (ECU simulation), or clear all rules.match_id, reply_id, reply_data, match_ext=false, reply_ext=false, clear=false
can_statusLink state: mode, bitrate, error counters, bus-off.none
can_closeClear responder rules and stop CAN.none

Other

ToolPurposeParameters
la_stepStep pulses for step/dir motor drivers: delay is half the step period (4 us to 65.535 ms), steps up to 65535.la, steps, delay, dir_la, direction=0
commandRaw firmware JSON command, for anything no tool covers.request

Two resources are also exposed: benchpod://wiring (the connected pod's effective wiring profile: which role or named signal is on each LA channel) and benchpod://help (the server instructions). The wiring tool returns the same profile and set_wiring changes it; it is the pod's wiring profile that the web app's Wiring tab edits and the SDK reads as bp.wiring.

How it behaves

  • Instructions. The server sends usage instructions when a client connects (session start, typical flows, units), so the agent knows to connect and set the LA voltage before anything else.
  • Typed, structured results. Every tool has an input schema with enums and ranges (paths, sources, LA channels 1-14, eFuse 1/2) and an output schema. Units are volts, seconds and hertz.
  • Errors. A tool that cannot do what was asked fails with an error that names the cause, such as FirmwareError: uart_proxy_start: la voltage not set; call set_la_voltage first with the DUT's I/O voltage (1.8 or 3.3). A completed operation with a negative outcome is a normal result: flash returns ok: false with its logs, a UART capture matched: false.
  • Refusals. When the pod or the server refuses a command, the error names the kind and ends with a one-line hint: PodLockedError (the pod's LAN policy keeps the command for the cloud or USB), PodLeasedError (a cloud job holds the pod, with who and for how long), PodBusyError (a capture or upload is running), PermissionDeniedError (the credential lacks the right, for example an API key without the benchpod:admin scope) and TransportTimeout (the pod did not answer). A dropped link is a ConnectionClosedError. status also warns when a cloud job holds the pod or the LAN policy is locked.
  • Capabilities. connect and status report what the pod can do as flags, such as la_pins, capture_trigger, power_profile, nrst_pin, can, calibrate, current_out, pod_current and analog (false on the digital-only board), plus its policy and cloud settings (dac_limits, flash_kb, ota_sig, sig_policy, lan_policy, tunnel_max_tier, lease_state, cloud_ca, cloud_proxy), so an agent can check before it calls a tool.
  • Agent-sized captures. capture_adc returns calibrated statistics, the dominant frequency and a min/max envelope; capture_la returns per-channel levels, edges and frequencies. The last captures stay in the session for decode_la, replay and saving to the waveform library.
  • Sessions. uart_open buffers the console in the background (open it before power_on, then uart_read / uart_write); can_open keeps a CAN bus open across calls.
  • Non-blocking. Long operations such as a flash run in the background, send progress, and never interleave commands with another call.
  • Annotations. Read-only tools are marked so clients can auto-approve them; tools that power, flash or drive voltages are marked destructive.

Example agent flow

connect()                                  # BENCHPOD_CONNECTION + BENCHPOD_LA_VOLTAGE
wiring()                                   # which DUT signal is on which LA channel on this pod
flash(swclk=11, swdio=12, nreset=true, target="target/stm32f4x.cfg",
      file="build/app.elf", target_power=1)
power_cycle_and_capture(rx=5, tx=4, delay=1.0, duration=5.0, until_regex="APP_OK")
set_pull(las=[1, 2], enabled=true)
enable_i2c_sensor(temperature_c=22.5, pressure_pa=101000)   # SDA/SCL from the wiring profile
power_cycle_and_capture(rx=5, tx=4, delay=1.0, duration=5.0)
i2c_sensor_capture(address=0x76, register=0xD0)   # did the firmware read the chip id?

FAQ

Do I need to install uv or Python?

Not for the plugins. The Claude Code and Codex plugins (1.0.8 and later) use your uv if you have one, and otherwise download a private copy on first start, which also fetches Python. Setting up a client by hand (claude mcp add, codex mcp add, a JSON or TOML config) runs uvx, so that needs uv on your PATH. Alternatively, pip install embeddedci-mcp (Python 3.10+) and run embeddedci-mcp as the command.

brew install uv
# or: curl -LsSf https://astral.sh/uv/install.sh | sh

Codex says “no BenchPod MCP tools are exposed”

The plugin is installed but its server didn't start. The first start downloads uv and the server, so give it a minute, then quit Codex completely and reopen it. Plugin versions before 1.0.8 need uv installed already: update or reinstall the BenchPod plugin in Codex, or install uv (above).

“command not found: claude” or “codex”

The Claude and Codex desktop apps don't add a command-line tool. Use the app steps above, which need no terminal, or install the CLI from the tabs in its section.

What does flashing need?

The flash tool drives OpenOCD on the machine running the server, and reads the firmware file from that machine too. It needs the cmsis_dap_tcp backend, which only exists in builds newer than 0.12.0; the stock packages lack it. Nothing else needs OpenOCD.

# Homebrew's stable open-ocd is 0.12.0, so build it from HEAD
brew install --HEAD open-ocd
